compound metadata · troubleshooting

I am having some trouble with the visualization of (nested) compound metadata. Short version: I have a datasetField called "Parent" with type none and two related fields "Child A" and "Child B" that both allow multiple entries from controlled vocaularies and are nested under "Parent" (i.e. have "Parent" in the parent column).

Henning Timm (Jun 02 2023 at 09:59):

I can enter multiple values for the "Child A" and "Child B" fields but only the first entry is shown in the UI.

Henning Timm (Jun 02 2023 at 10:02):

E.g. if I enter "Child A": 1, 2, 3 , "Child B": 4, 5, 6 the metadata panel of the dataset will only show 1, 4.

Henning Timm (Jun 02 2023 at 10:05):

This is the problem discussed in https://github.com/IQSS/dataverse/issues/9200 right?

Henning Timm (Jun 02 2023 at 10:15):

Since there seems to be the possibility of SOLR not playing nicely with this pattern, is it advisable to use a flattened metadata schema instead?

Philip Durbin 🚀 (Jun 02 2023 at 14:11):

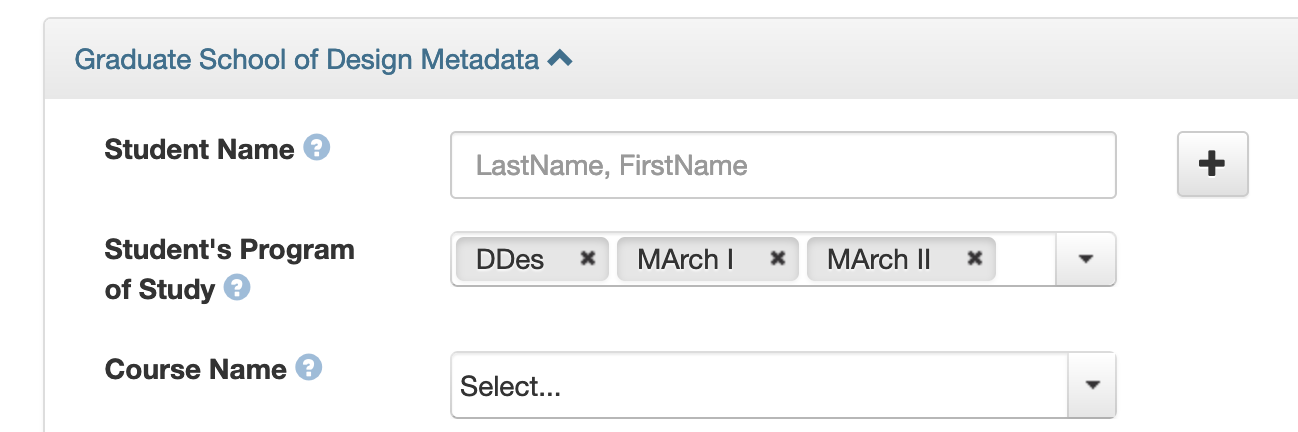

@Henning Timm are you trying to do something like "Student's Program of Study" in this screenshot?


Philip Durbin 🚀 (Jun 02 2023 at 14:12):

That block is here: https://github.com/IQSS/dataverse/blob/v5.13/scripts/api/data/metadatablocks/customGSD.tsv

Philip Durbin 🚀 (Jun 02 2023 at 18:26):

Oh wait... you want a subfield. Hmm. :thinking:

Julian Gautier (Jun 04 2023 at 18:30):

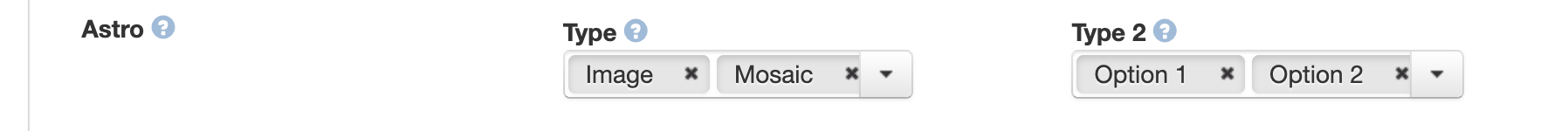

I think I'm seeing the same thing. I adjusted one of the fields in the astronomy metadatablock so that it was a compound field with two subfields, where each subfield had a controlled vocabulary and allowed multiple values:

Julian Gautier (Jun 04 2023 at 18:30):


Julian Gautier (Jun 04 2023 at 18:31):

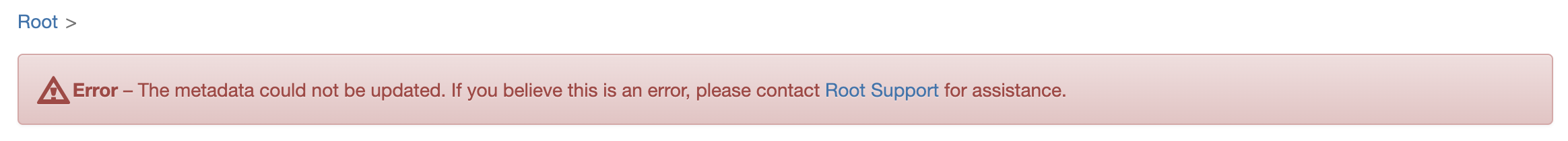

But Dataverse gives me error messages when saving the dataset with this metadata:

Julian Gautier (Jun 04 2023 at 18:32):

And when I view the metadata, only two of the controlled vocabulary terms are shown: the first term I chose from the first child field and the first term I chose from the second child field:

Julian Gautier (Jun 04 2023 at 18:36):

I don't think https://github.com/IQSS/dataverse/issues/9200 is related.

And I wonder if I would have this problem if I created a new metadatablock instead of editing the astronomy metadatablock that ships with Dataverse.

Henning Timm (Jun 05 2023 at 08:22):

Thanks for the fast replies!
Yes, my metadata block looks like what @Julian Gautier has reproduced. I did not get an error when saving, but my metadatablock was new, so that probably was the difference there.

Henning Timm (Jun 05 2023 at 08:23):

As a workaround, I decided to "flatten" the entry for now.

Julian Gautier (Jun 05 2023 at 13:49):

Thanks Henning. Channelling my inner-Phil here, would you like to open a GitHub issue to report this bug. Then I'm hoping folks can investigate the causes, such as if it's something to do with SOLR. Very recently I helped with a new metadatablock and we almost included fields like these, so we would have run into this bug, and others may run into the bug, too, where flattening wouldn't be a good workaround.
